BISONTEC B380:14"/15" Brushed Cold Cutting Saw

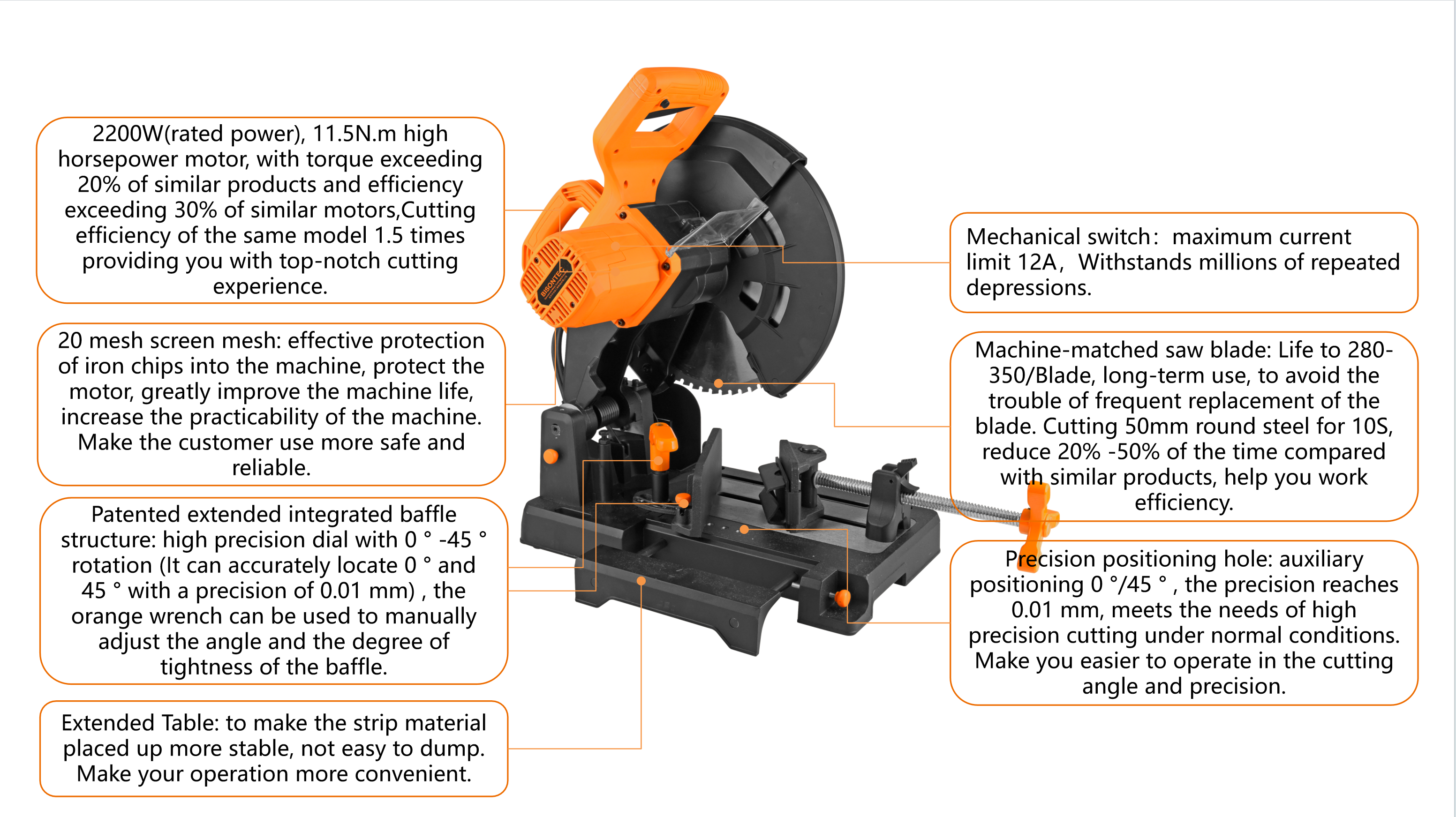

2200W Rated Power Brushed motor delivers powerful torque!

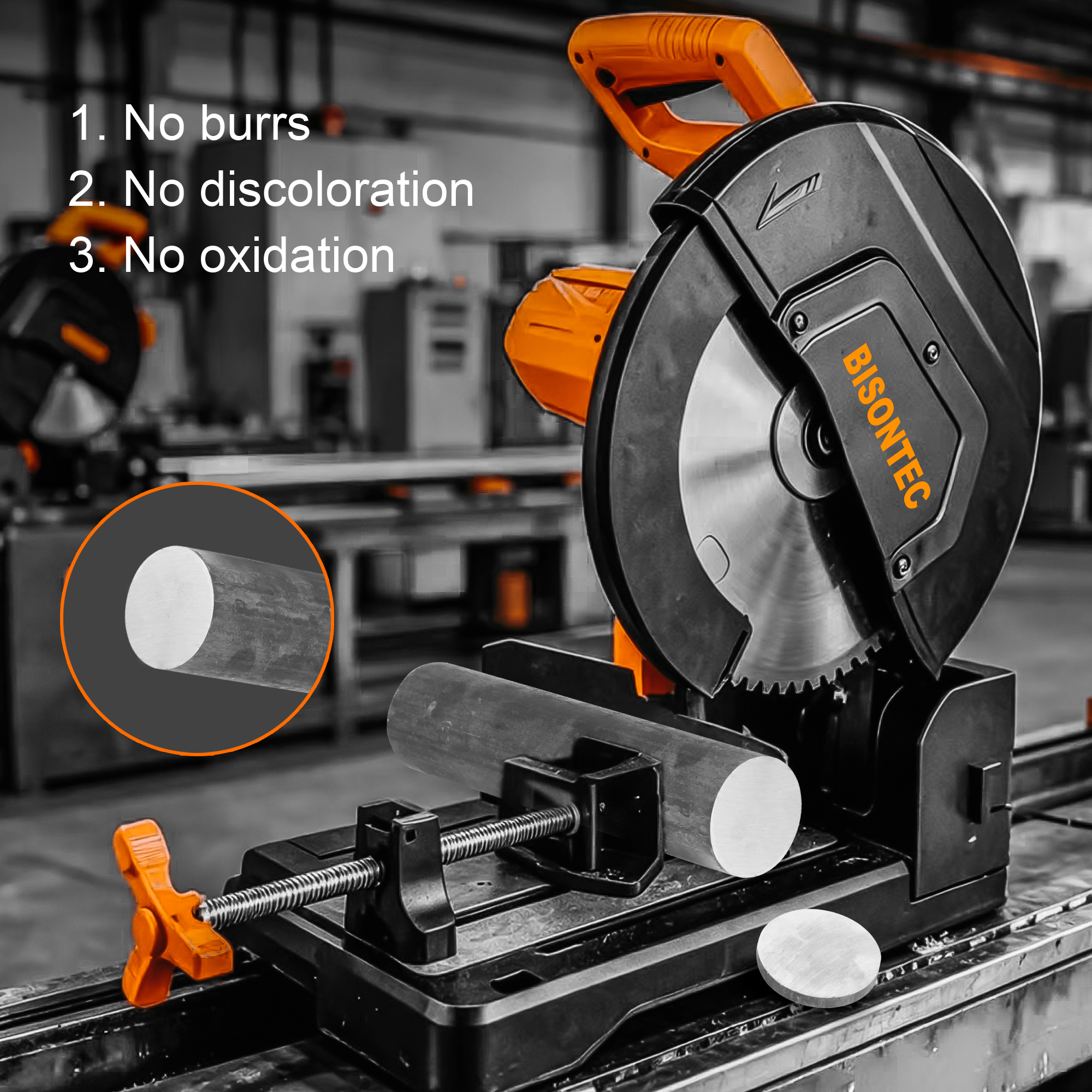

The B380 machine boasts outstanding advantages: high cutting efficiency, no high-temperature sparks, smooth cutting edges, minimal wear and tear, and an extended service life.
Ideal Applications:
1. Construction & steel structure fabrication.
2. Metal product manufacturing & processing industry.
3. Scrap metal recycling & dismantling.
4. Decoration & fitment industry.
The design purpose of this machine is to make it easier for customers to cut large-sized metal materials.

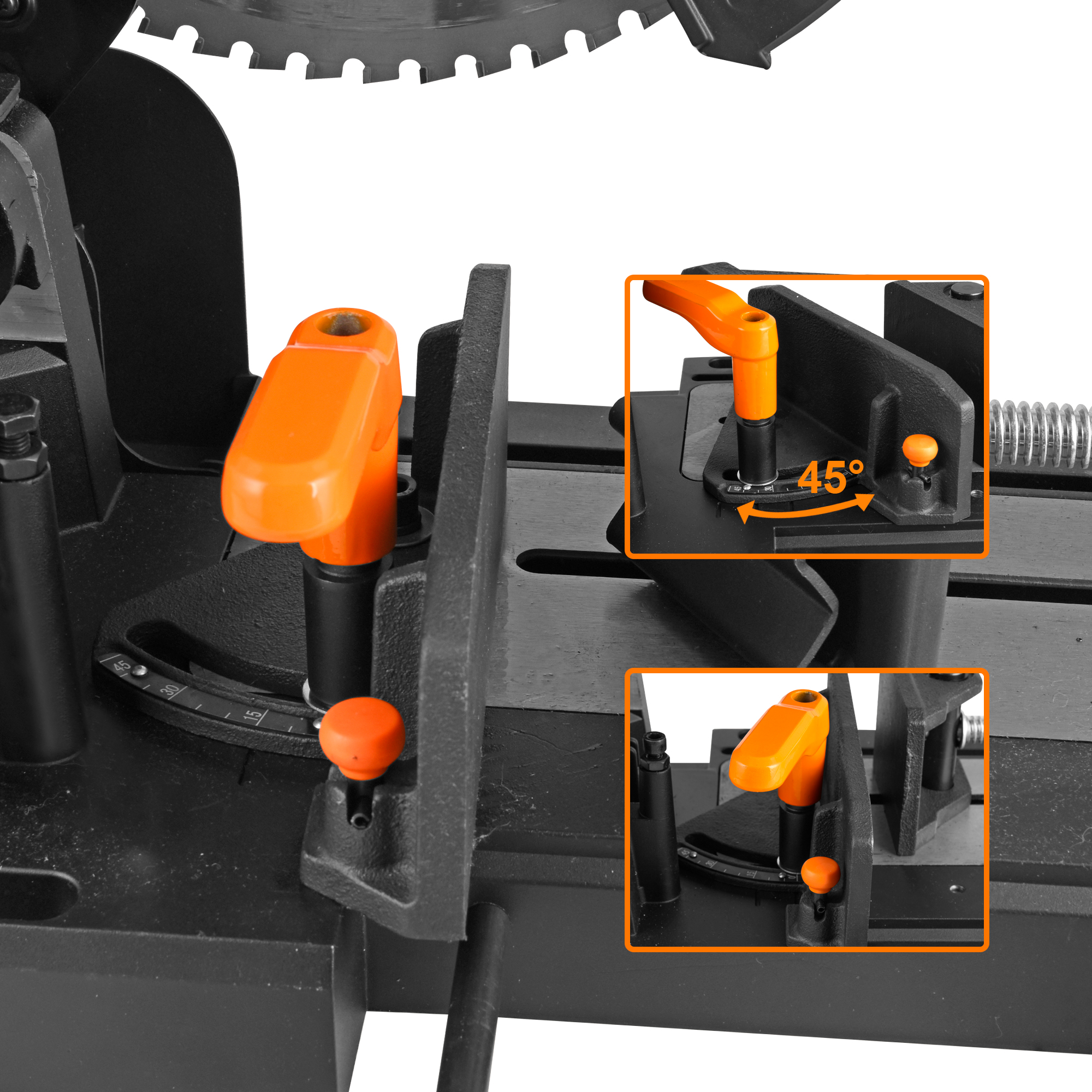

1.Aluminum base, Extendable support table for keeping balance of long metal materials.Precisely position at a 45° angle.
2.Motor (220V-240V 50/60Hz):73% High-efficiency brushless motor,providing powerful cutting support. This motor uses UH series permanent magnets (UH series permanent magnets are generally used for new energy vehicles and high-end industrial equipment).
3.Saw blade: BISONTEC saw blade, capable of cutting 2-inch mild steel more than 400 times.
4.BISONTEC B380 Metal Cold Cutting Saw could cut 2 in. mild steel in 12 seconds.
  • B380

  • BISONTEC

Availability:
Quantity:
  • Heavy steel structure processing field

  • Curtain wall and large door and window engineering processing

  • Manufacturing of construction machinery and agricultural machinery parts

  • Pipe processing and installation engineering

  • Processing of large metal furniture and wrought iron products

  • New energy and special industries


15” blade guard accommodates the 14/15" blade, providing extra capacity for specific cuts when needed.

Cast iron fence – exceptionally durable, The material is held very firmly.

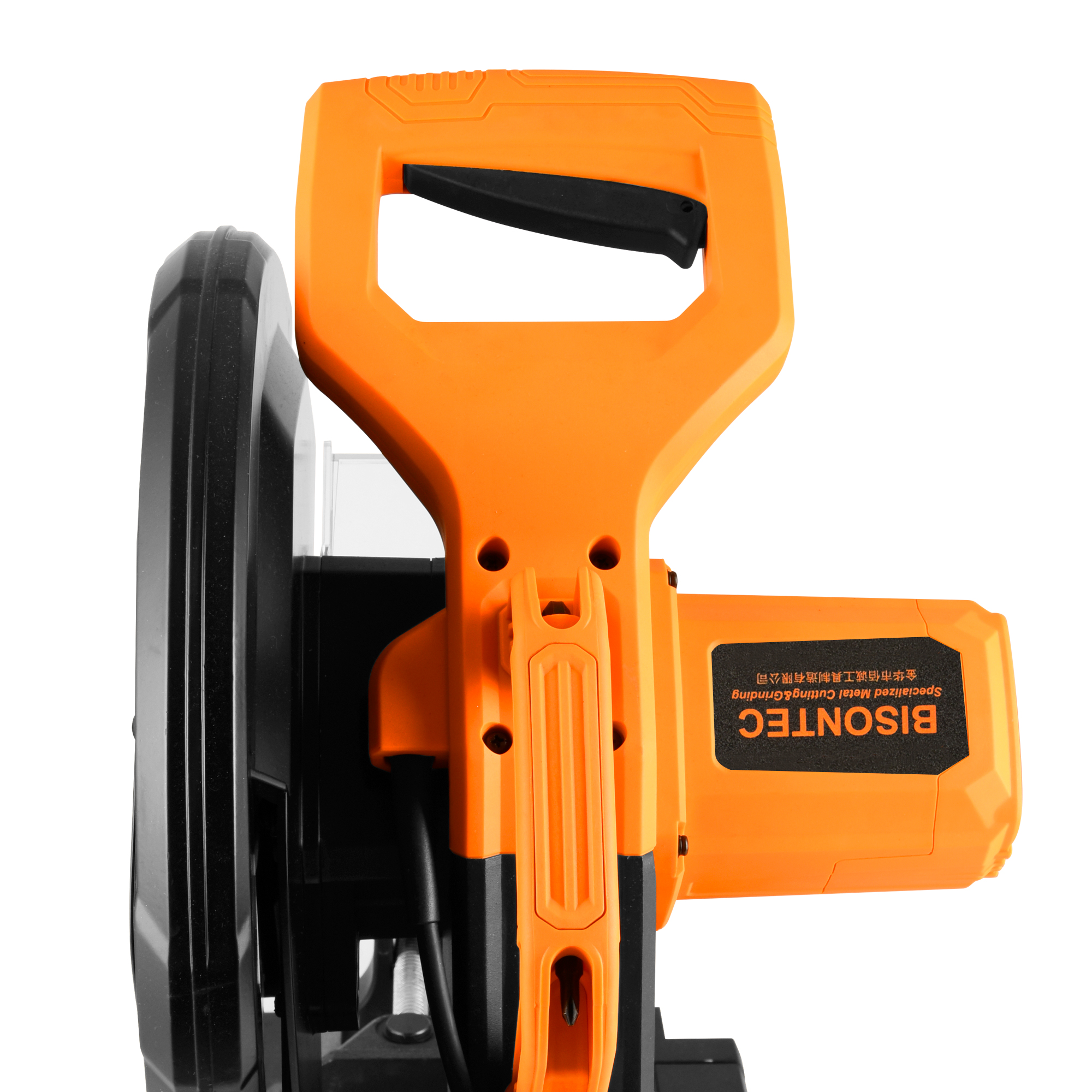

Ergonomic trigger with comfortable textured grip.

Quick-release vice with robust square-threaded rod for fast & secure clamping.

Compact design with a head lock-down pin & back carry handle for easy transportation.

Dust collection box: guide and collect the metal scraps.

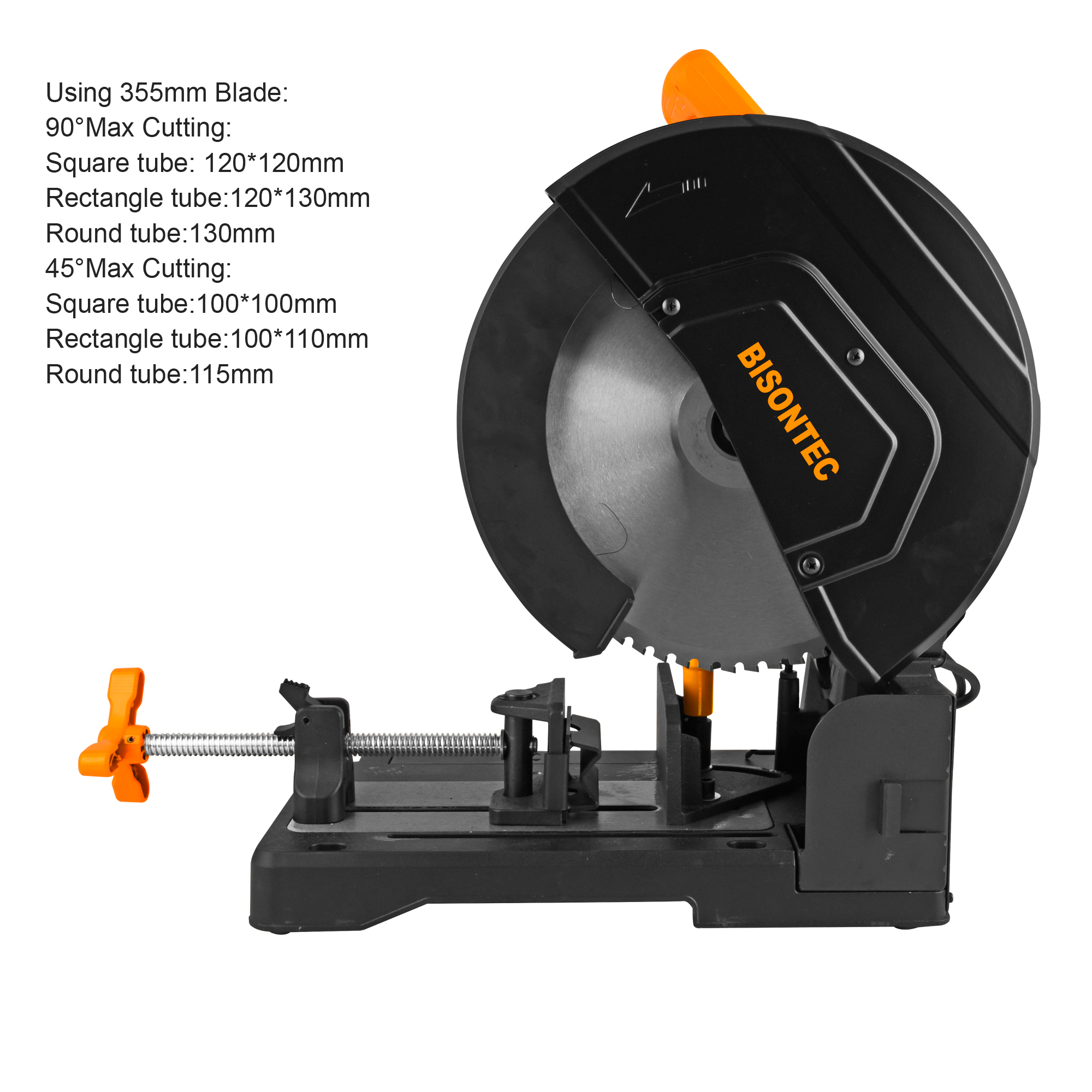

Cutting capacity(90°)

Square tube: 120*120mm

Rectangle tube:120*130mm

Round tube:130mm

Cutting capacity(45°)

Square tube:100*100mm

Rectangle tube:100*110mm

Round tube:115mm

Machine Spec

Motor (220-240V 50/60Hz)

15A

Speed without load

1300 rpm

Max. Bevel (Left):

45°

Cable length

10 ft

Weight

25KG / 55.2 pounds

Tested life: Cutting 2in.mild steel about 5000 times

The above test results are only for reference.The actual cutting life will vary according to the material and usage.

Blade Spec

Blade Dia

355mm/14", 380mm/15"

No. Of Teeth

66

Bore.

1in.

Kerf.

0.09in.

Item included:

66 Tooth Chromium vanadium steel base ceramic cutting head blade

45# M8 Hex Key+PH2
