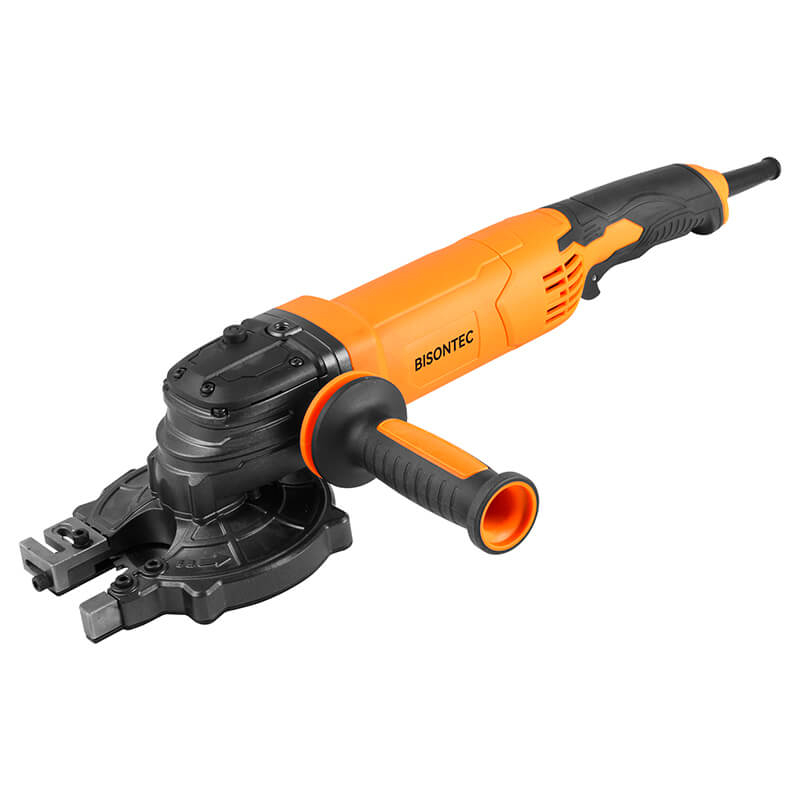

BISONTEC BY120:6AC Metal Hand-Held Cutting Chop Saw

This product is suitable for quick cutting of small caliber, thin-walled materials, and its main application scenarios are as follows:
1. Home decoration and electrical installation
2. processing and maintenance
3. crafts and small workshops
4. Local operations on construction sites

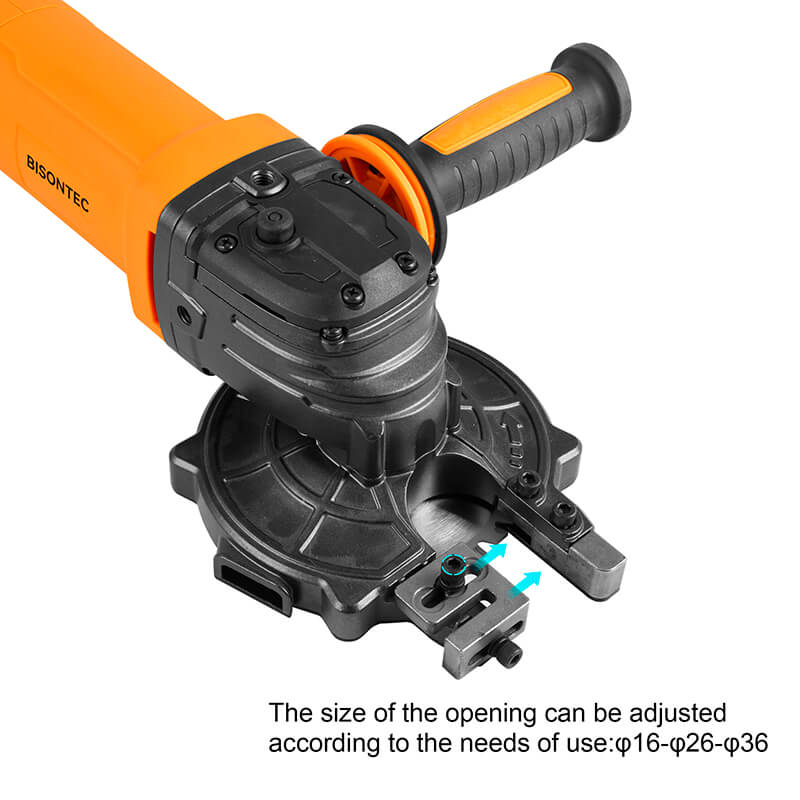

1. Adjustable and fixed head design, can cut any diameter of 0-φ36mm.(You can also choose a fixed gear:φ16-φ26-φ36)
2. 1100W powerful power/ motor efficiency 55% can make this machine able to easily cut the reinforcement of φ36 and below. It only takes 8-10S to cut the φ36mm thread steel.
3. Metal cutting disc (φ22.23xφ120x1.2-28T), tooth surface width 1.7mm.
4. Motor : 10A, Net weight : 2.9KG(6.4 pounds), Let this machine could be held easily.
5. This machine contains nearly all the features that the customer wants it to have: Constant speed/Constant power/Overload protection(Above 12A will stop)/Power/Failure protection/Soft start (2S)
Availability:
Quantity:
  • Scattered cutting operations at the decoration and installation site

  • Small batch processing in hardware repair stores

  • Partial cutting for car maintenance and modification

  • Auxiliary material feeding and cutting for factory production line

  • Handcrafted by small wrought iron and DIY studios

  • Construction site and on-site installation

  • Metal Processing and Manufacturing Industry

Introducing BISONTEC 1300W Hand-Held Metal Cold Cutting Saw: BY120

Comparison table of the core differences between the hand-held cold cut saw and the angle grinder:

Comparison dimension

Hand-Held Cutting chop saw

Angle Grinder

Cutting principle and temperature

Tooth saw cutting, cold cutting mode, no high temperature annealing of materials, will not oxidize and discolor.

Grinding with grinding wheel, serious friction heat, easy to cause material deformation, easy to anneal

Surgical incision quality

The cut is flat and smooth, with no burrs or flash, no need for secondary grinding.

The cut surface is rough and has burrs, the edges are prone to curling, and must be polished.

Work safety

No high-temperature sparks, suitable for flammable environments; saw blade protection is complete, and material splashing is less.

Sparks fly violently, fire hazards are great; grinding wheel discs are prone to burst, and the risk is high.

Scope of applicable materials

Thin-walled metal tubes, aluminum alloy profiles, PVC pipes, light steel keels and other lightweight materials

Wide range of applications, can cut metal, stone, wood, but the cutting accuracy of lightweight materials is poor.

Convenient operation

Lightweight and easy to hold, with stable torque, it is not easy to jam during cutting, and it is easy for beginners to get started

Large body vibration, need to control the force, easy to fatigue for long-term operation.

Rated Input Voltage: Custom sized.

Rated Input Frequency: Custom sized.

No load Speed: 2450RPM

Rated Power: 6A

Tool type: II

Cutting diameter 8-34mm,

saw blade outer diameter 120mm

inner hole 22.23

One set of durable and long-lasting carbon brushes.
