BISONTEC BW180: 7in. Metal Cold Cutting Saw
Home » Products » Cold Cutting Saw » AC Benchtop Cold Cutting Saw » BISONTEC BW180: 7in. Metal Cold Cutting Saw

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

BISONTEC BW180: 7in. Metal Cold Cutting Saw

Unlike traditional 14-inch or 15-inch cold cutting saws, this Cold Cutting Saw is characterized by its light weight, small size, portability, and high efficiency, especially It could cut Stainless steel materials instead of pipe cutting machine and metal circular sawing machine.

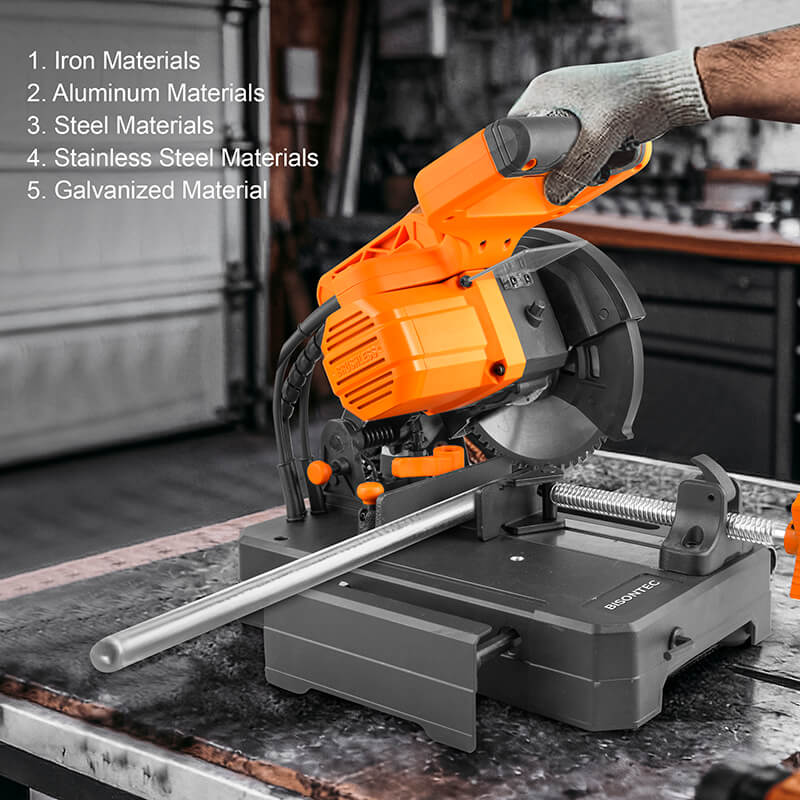

This Product can cut wood, round steel, threaded steel, stainless steel, aluminum profiles, copper, etc.

1.Aluminum base, Extendable support table for keeping balance of long metal materials.Precisely position at a 45° angle.
2.Control panel: Displays load status, +/- speed control buttons.(1900/2300/2800 RPM)
3.Brushless Motor:75% High-efficiency brushless motor,providing powerful cutting support.This motor uses UH series permanent magnets (UH series permanent magnets are generally used for new energy vehicles and high-end industrial equipment).
4.Saw blade: BISONTEC saw blade, capable of cutting 18-inch solid round steel more than 300 times.
5.BISONTEC BW180 Metal Cold Cutting Saw could cut stainless steel materials instead of using pipe cutting machine and metal circular sawing machine. Which will reduce your large amount of costs.
Availability:
Quantity:
  • Metal Processing and Manufacturing Workshop

  • Doors, windows, and guardrails processing industry

  • Hardware Products and DIY Studio

  • Architectural decoration and installation site

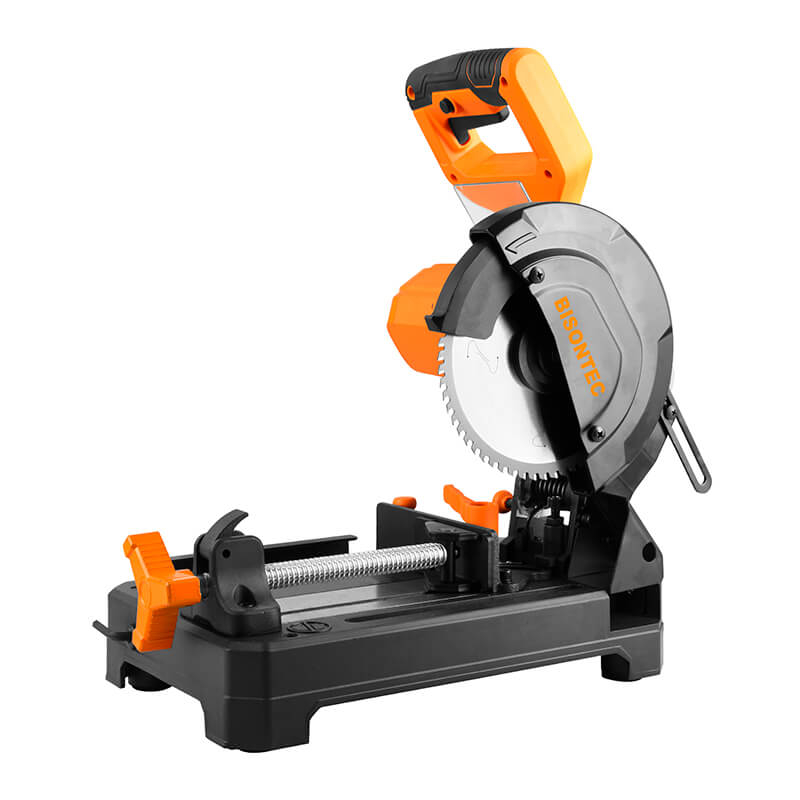

Introducing BISONTEC 7” Metal Cold Cutting Saw : BW180

With the maximum load capacity of 12A, the motor provides strong power to handle various complex cutting situations and is suitable for use in various scenarios.

This product solves a difficult problem in the field of cutting: cutting stainless steel.

Through research on the physical properties of stainless steel materials. This product can smoothly cut both thin and thick stainless steel materials, which is a function that previous Cold Cutting Saws could not achieve.From this point on, this product became a true metal Cold Cutting Saw.

This Product includes has 3 improvements:

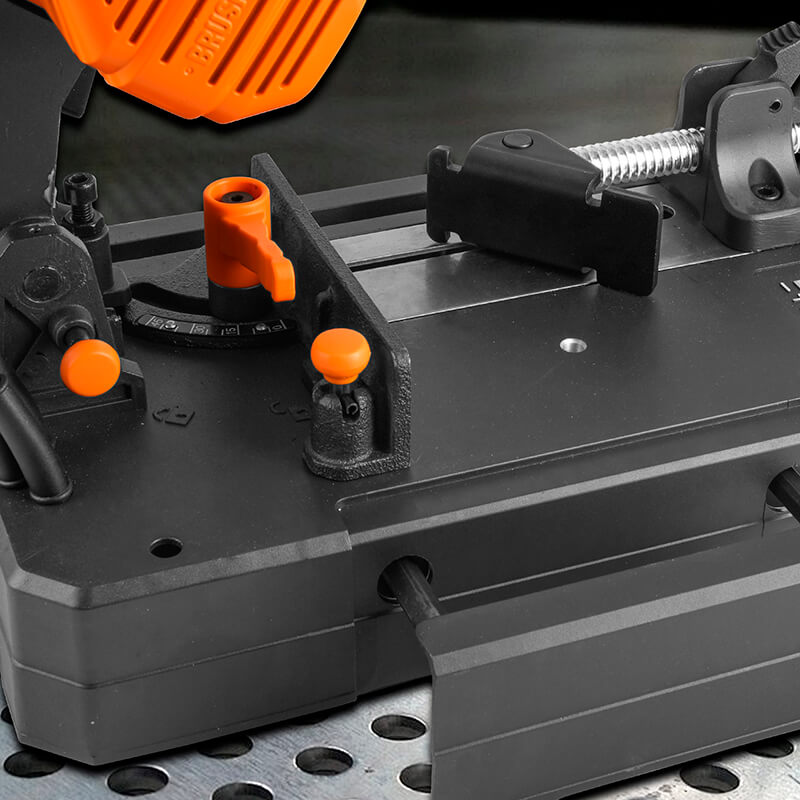

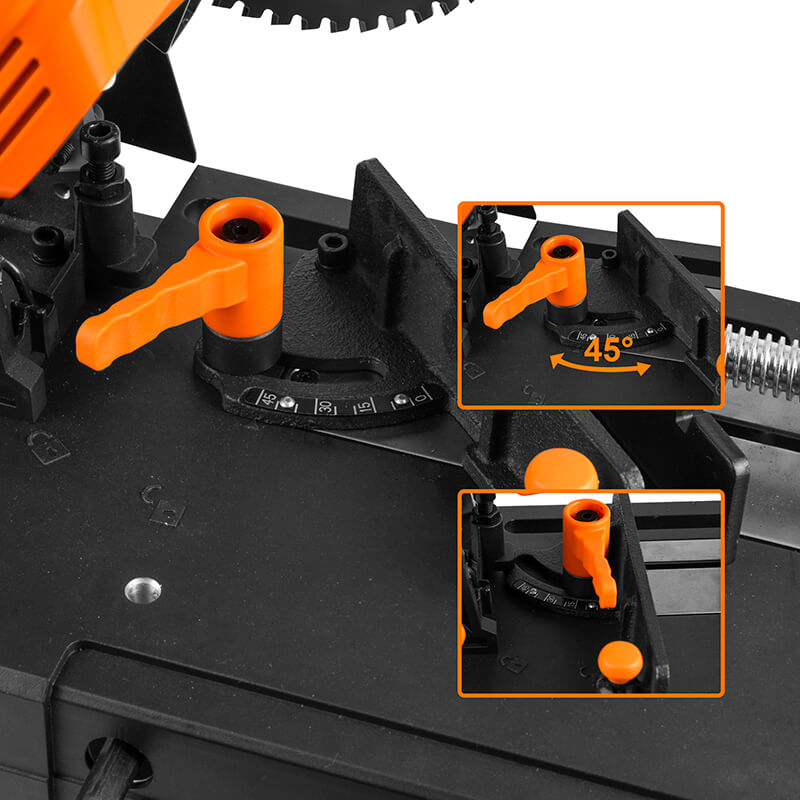

45° positioning hole: Makes your 45° cut precise and efficient, eliminating the need for a measuring tape.

Extended base: Allows you to maintain balance while cutting long pieces of metal.

Using an all-aluminum base to reduce weight.

This small chop saw is designed to meet users' needs for mobile cutting in various scenes by reducing weight, changing the machine base structure, and increasing motor efficiency.

Brake: Prevents injuries by stopping the blade within 3 seconds once the trigger is released.

Soft Start Motor: Minimizes mechanical stress on the motor during startup, extending cutting life. By smoothing the initial peak current, the soft start helps prevent excessive current surges as the blade reaches full speed.

Steel wear plate: Ensure precise cutting.

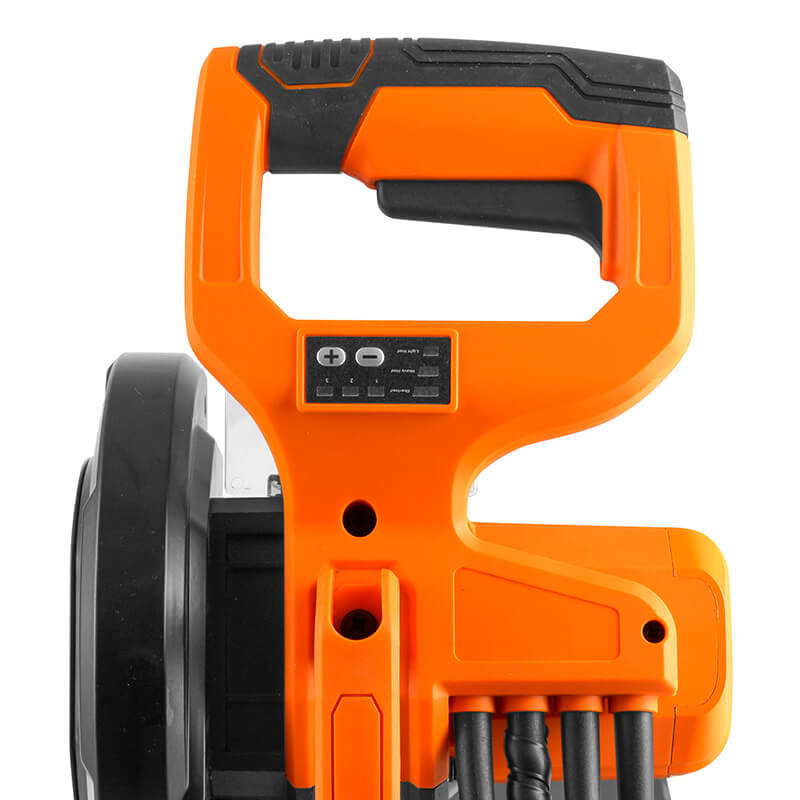

Control Panel: Load display(Red-Yellow-Blue), Speed control: +/-1900/2300/2800 RPM,

Overload Protection: Based on easily cutting of mild steel, we have set a current peak setting in order to preventing sudden current surges and protect the motor's lifespan: when the red light is on and the user continues to press harder, our machine will enter a protection state, requiring you to release the machine switch and restart it.

7.5” blade guard accommodates the 7" blade, providing extra capacity for specific cuts when needed.

Cast iron fence – exceptionally durable, The material is held very firmly.

Ergonomic trigger with comfortable textured grip.

Quick-release vice with robust square-threaded rod for fast & secure clamping.

Compact design with a head lock-down pin & back carry handle for easy transportation.

Dust collection box: guide and collect the metal scraps.

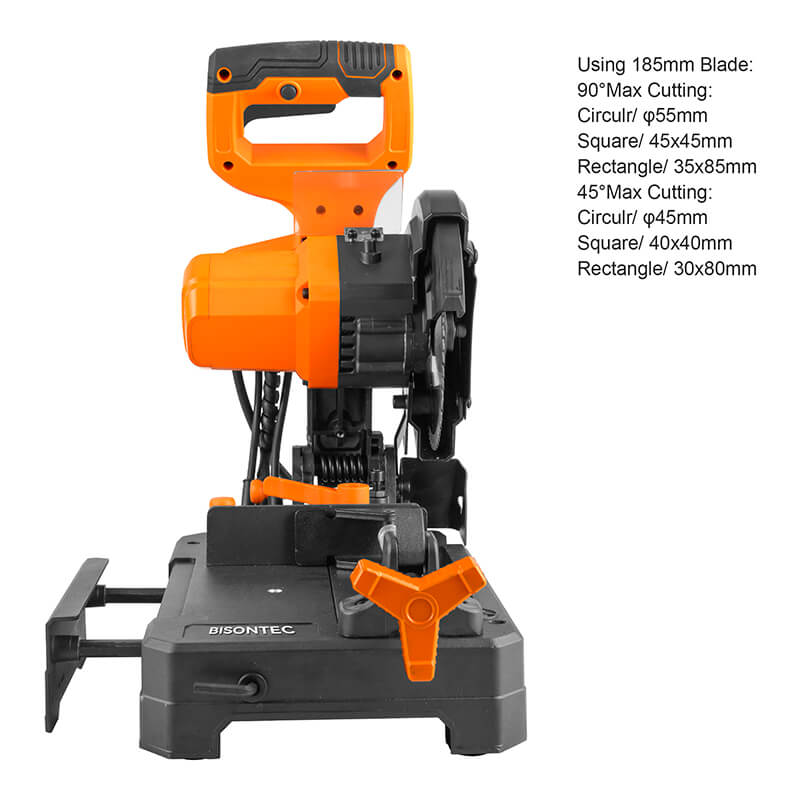

Metal Plate for all material (Max Thickness): 55mm (2.16in.)

Square tube at 0°: 45*45mm (1.77*1.77in.)

Square tube at 45°: 40*40mm (1.57*1.57in.)

Rectangle tube at 0°: 35*85mm (1.37*3.34in.)

Rectangle tube at 45°: 30*80mm (1.18*3.14in.)

Round tube at 0°: 55mm (2.16in.)

Round tube at 45°: 45mm (1.77in.)

Machine Spec

Motor

12A

Speed without load

1900/2300/2800 rpm

Power

Corded

Max. Bevel (Left):

45°

Cable length

10 ft

Weight

11KG / 24.3Pounds

Tested life: Cutting 1-3/4in.mild steel about 10000 times

The above test results are only for reference.The actual cutting life will vary according to the material and usage.

Blade Spec

Blade Dia

185mm/7” Blade

No. Of Teeth

36

Bore.

0.866in.

Kerf.

0.063in.

Item included:

36 Tooth Chromium vanadium steel base ceramic cutting head blade

45#Hex Key 6x90mm+PH2
